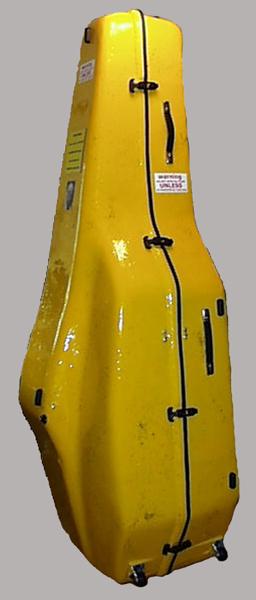

Rabbath case
with it's unique "SUSPENDER system" (patented)
To get to the page 2 and the report on the ISB click here!
2007 CONVENTION
Oklahoma City University, Oklahoma City Wanda L. Bass School of Music
June 4-9, 2007
BOOTH # 25
    6 Good Reasons to choose a Rabbath'case© for Instrument
    Protection:

    1-The Rabbath'case© weight  35 pounds!  The exceptional fusion of
    Kevlar, and  Carbon - vacuum bagging technique* - gives the case
    all the characteristics required for creating:
    Lightness, Strength, Durability.

    2-The Rabbath'case© front and the back are completely removable.
    This allows the option to stow the case nested, eliminating the
    burden of huge  volume, when storing between uses.

    3- The Rabbath'case©’ unique "SUSPENDER system"  (patented)
    suspends the double bass 5 inches from the walls of the case,
    totally protecting the instrument from the outside world. No harmful
    vibrations can reach the instrument.

    4- The Rabbath'case© offers a totally unique "SUSPENDER'
    system"  (patented).
    This eliminates use of foam, which causes more contact between
    your
    instrument and the exterior.  Foam also increases weight.

    5- The Rabbath'case© keeps your instrument drier and helps speed
    customs checks. Removal of the double bass is now unnecessary.

    6- All Rabbath'case© are 100% guaranteed!
DIMENSIONS AVAILABLE * (dimensions are taken from the outside of the case)
Height: 203cm or 80"
Width: 88.9cm or 35"
Total depth when closed:
66cm or 26"
Weight: 35 Pounds Approx.
MEDIUM (7/8 & 3/4 size)
LARGE  (over 7/8 size)
Height: 218.44cm or 86"
Width: 88.9cm or 35"
Total depth when closed:
66cm or 26"
Weight : 40 Pounds Approx.
SMALL (1/2 & 1/4 size)
size    A          B        C        D         E         F
7/8    190     116      106     52.2     40       69.6
3/4    182     111      105     49        36.5    67.8
1/2    167     102        96     47.1     34.6    59.5
1/4    156       95        90     43.6     32.1    55.3
in centimeters
Height: 175cm or 68.89"
Width: 68cm or 26.77"
Total depth when closed:
52cm or 20.47"
Weight: 30 Pounds Approx.
*  CUSTOM CASES,  DESIGNED TO FIT YOUR
DOUBLE BASS, ARE AVAILABLE. SIMPLY
CONTACT ME FOR TIME  AND PRICE.
kevlar link
Its chemical characteristics
1
who invented kevlar?
what is its characteristic and used
in the industry?
2
carbon fiber
How carbon fiber is made?What is its characteristic?
3
Carbon fiber, its application in
the industry
4
In order to understand your case component, you
need to get informed about the material itself. DO NOT
believe anyone but the source, when seeking information.
Kevlar is one of our most noble materials today.
The more a consumer knows about Kevlar and Carbon,
the less chance they can be deceived by misinformation.
Please take advantage of the important links below.
My wish is to facilitate your understanding.
    Price: $6,490
    Full payment upon order.
    All sales are final.
    Shipping within in the USA and overseas,
    Please contact for rate range to your
    location.
    1-917-673-3891
For contact please write me at:

    We accept
    personal ,
    company
    checks
    money
    order or
    credit
    cards (with
    an extra
    2.75% fee)
    ORDER CONFIRMATION AND INSTRUCTIONS FOR SUBMISSION OF
    INSTRUMENT MEASUREMENTS  For those situations where instrument is
    oversized.

    Step 1: Use rolled paper 36" inches in width
    (Staples has Bienfang® Paper Poster Rolls, 36"W x 25 yds., White
    Paper ). If impossible to find, please choose something similar.

    Step 2: Roll out paper on flat surface. Cut 2 pieces, each approximately
    8 inches longer than the instrument. Place them side by side, and
    overlap until you have enough width to draw the silhouette of your
    instrument with a 3-inch margin on sides. Tape securely along the middle.

    Step 3: - Lay down instrument approximately 4 inches from top,
    leaving 3 inches on each side.

    Step 4: Beginning from paper edge, using a soft pencil, carefully trace
    instrument around edges.

    Step 5: Mark the position of the bridge and measure it's highest point.

    Step 6: Cut paper, leaving 2 inches at base and top of instrument.

    Step 7: Roll and mail in tube available at an office supply or possibly
    your post office. Priority Mail Packaging is free, if tube size is available.
    If necessary to fold paper to fit into tube, fold along edges.
    Be sure that tape is not disturbed.

    Further:

    Clearly print all measurements. Print Name and Contact information
    on sheet.
    A check for total amount due should be included with specifications to
    complete Order.
    If choosing Pay Pal for payment, please note the Date and ID# of the  transaction.

    Send to:
                            The Rabbath'Case®
                          att: Mr Olivier Rabbath
                             Please call to get the right address dept.

    Thank you for your order. It is my pleasure to serve you.
rabbathcase@olivierrabbath.com

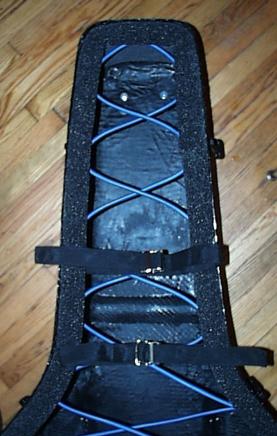

DETAILS
Light and durable with
steel reinforcements
Handles :
Light and durable
Wheels :
Easy for customs to open
Locks :
Reorder parts:
    *Introduction of vacuum bagging technique:

    An ideal fiberglass layup minimizes the amount of resin because resin by
    itself adds weight without adding strength. When doing fiberglass layup
    by hand, it is hard to get the minimum amount of resin because you need
    enough to soak the cloth and the cloth doesn't lay completely flat against
    the surface. The solution to this is vacuum bagging.

    Vacuum bagging uses atmospheric pressure to press the cloth tightly
    against the surface being covered so that the excess resin is squeezed
    out and soaked up in a disposable outer wrap. This technique requires a
    vacuum bag, vacuum pump capable of pulling a significant vacuum (at
    least 25 inches of mercury) and various accessories and supplies. Thus
    vacuum bagging has been mostly restricted to large commercial use.

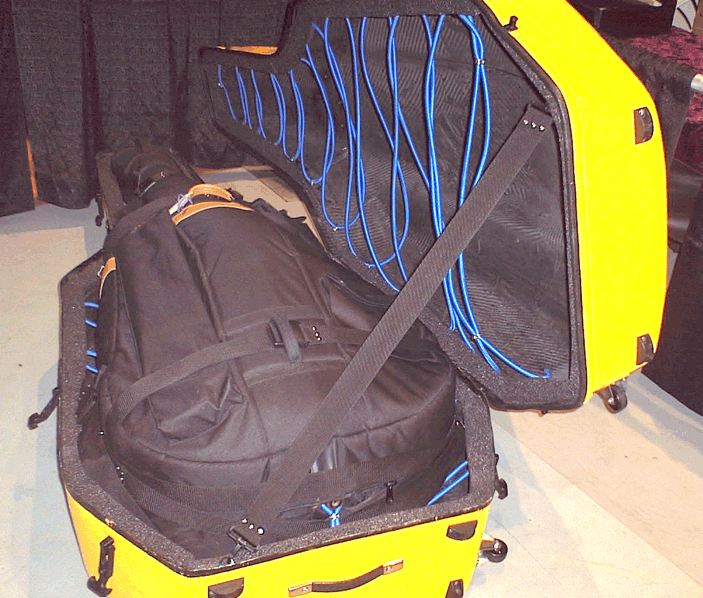

No harmful vibrations can reach
the instrument.

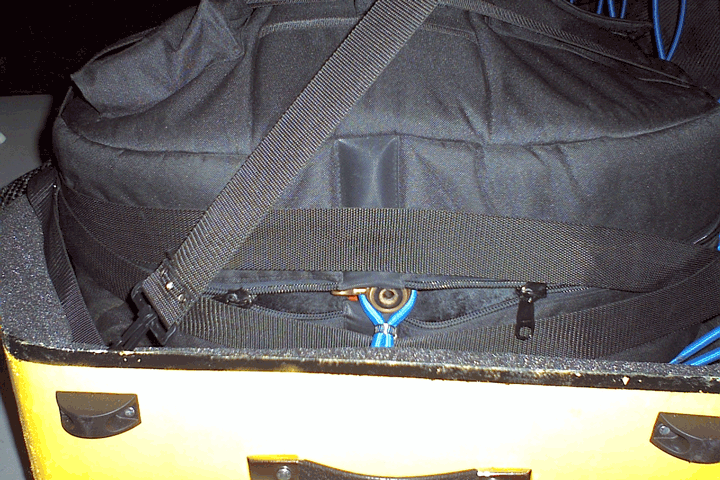

Attachment of the endpin (details)
The cases are proudly made in New York City!
An adjustable high stool with genuine leather for playing
the double bass that can be transformed to a careful
trolley for a double bass in under 10 seconds!
Click here: www.doubletrolley.com
Important link to complete your order!
                                                                            Mode d'emploi de la "Rabbath'case" pour la premiere fois.
                                                       Directions for use of the "Rabbath'case" the first time.

    1- La caisse est toujours allongee, pour l'ouvrir ou la fermer.
    A- Case must be in a horizontal position (laid flat) when opening and closing.

    2- Enlever la pic.
    B- Take off the endpin.

    3- Elargisser la 5eme ceinture qui passera SOUS le bas de la contrebasse afin de lui donner de l'espace mais ne l'ouvrer pas completement.
    C- Without detaching hook, loosen the 5th belt, which goes under the bass.

    4- Ouvrer les 4 ceintures qui traversent la caisse horizontalement, ouvrer les completement.
    D- Open the other 4 belts completely.

    5- Placer la contrebasse avec sa housse au millieu de la caisse sur les 4 ceintures ouvertes.
    E- Place the bass, with its gig bag, in the middle of the case on the 4 opened belts.

    6- Verifier que la contrebasse s'enfonce suffisamment dans la caisse  (environ 10 cm). si necessaire, serrer ou donner du mou a l'elastique en
    desserrant les anneaux de serrage.
    F- Bass should sit deep (approximately 4 inches) into the case.  If necessary, tighten or loosen the elastic, using the 2 rings attached to the elastic.

    7- Serrer les 4 ceintures horizontales, en serrant bien et surtout en comprenant que la ceinture de droite tire la basse sur la droite l'empechant d'aller sur
    sa gauche, et la ceinture de gauche tire sur le cote gauche l'empechant d'aller sur sa droite.
    En d'autre termes, les ceintures placees horizontalement sont pour empecher tout mouvement horizontal de la contrebasse.
    G- Tighten the 4 belts well.  Keep in mind that the belt located on the right keeps the bass from moving to the left, and the belt located on the left keeps
    the bass from moving to the right.   In other words, the 4 belts are keeping the Bass from all horizontal movements.

    8- Placer la 5eme ceinture sous la contrebasse en faisant passer la "double ceinture" de chaque cote de l'attachement de la pic, et serrer la boucle.
    H- Place the 5th belt under the bass, the "double belt" should go on each side of the attachment of the en-pin.  Tighten the belt

    9- Attacher la boucle elastique autour de l'attachement de la pic.
    I- Attach the elastic, located on the bottom, around the metal attachment of the endpin.

    10- Verifier bien la balance entre la 5eme ceinture et la boucle elastique. Ici, ces deux elements doivent empecher le mouvement verticale de la
    contrebasse. Si la contrebasse est trop basse, tacher de tirer sur la 5eme ceinture, sans toutefois faire toucher la tete de la contrebasse contre la caisse
    bien entendu (garder 5 cm de distance de securite entre la tete et la caisse).
    J- Examine the balance of the tension between the 5th belt and the elastic bottom. Here, these two elements must stop any vertical movement of the bass.
    If the bass is too close to the bottom, pull it up with the 5th belt, but also avoid getting the head of the bass too close to the top of the case (keep 2 inches
    clearance)

    11- Placer le couvercle de la caisse. Le couvercle aura tendance a pousser vers vous, ce qui est normal. Vous devrez appuyer pour fermer le couvercle.
    La pression doit etre suffisamment forte pour tenir bien la contrebasse, mais pas trop pour vous empecher de fermer. ici, s’il est necessaire de regler la
    tension de l'elastique du couvercle, veuiller desserrer les anneaux de serrage, et donner du mou. Il n'y a pas de reglage universel car chaque
    contrebasse a sa propre dimension. Vous devez rechercher la tension ideale entre les deux elastiques (couvercle et receptacle), afin que votre
    contrebasse soit bien maintenue sans toutefois vous poser un probleme de fermeture de la caisse. Un travail de patience, mais definitif, car ce reglage
    ne se fait que pour sa premiere utilisation.
    K- When closing the cover of the case, you may have to gently push down, since the elastic will give some resistance. On the other hand, if the tension of
    the elastic is too strong, loosen the elastic by opening the 2 rings attached to the elastic for this purpose.
    The fit of the bass should be snug, but also allow you to close the cover.  Since each bass is different, there is no universal tension of elastic.  For that
    reason, you will need to adjust it to your bass' size.  This will only be necessary upon first use.

    12- Fermer les  fermetures en caoutchouc.
    L- Close the  rubber locks.

    13- Redresser la caisse, et n'hesiter pas a secouer la caisse. La contrebasse devrait a peine vibrer. Votre contrebasse est en total suspension.
    M- Stand the case upright, and don't hesitate to shake it.  The bass should only "vibrate" inside the case. You will feel immediately that your bass is
    floating inside,..... suspended.
The Customer agrees to the Terms and Conditions of the Company.
The Customer is responsible to check for Airline Requirements
(size and weight regulation), regarding the transportation of his/her instrument.
This is not the responsibility of the Manufacturer.
Exact weight and time of delivery
may vary from case to case.
